Purchase Wood CNC Router with CCD Camera for Sale in India, Maldives

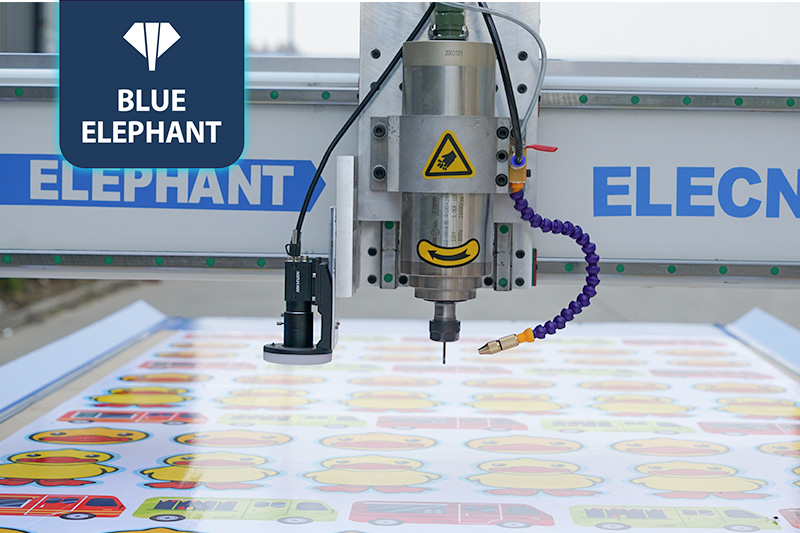

☆This CNC router is designed with a CCD camera. So it can realize the automatic edge inspection and cutting of various non metals.

CNC Router Machines Video

features

  • Equipped with CCD visual recognition system, it can realize automatic edge search, positioning, and cutting.
  • Adopting Mach 3 and Ruida system, it is easy to operate.
  • All accessories can be selected and customized according to your requirements.

Parameters

Model ELECNC1325
X,Y axis travel 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type 3.0kw water cooling spindle, 24000rpm, ER20
Inverter type 3.7kw
CCD camera CCD camera with the RD control system
Control system Mach 3, option: DSP A11
Driving system Step motor 450B with Leadshine 860H driver, option: leadshine mix servo motor/YASKAWA servo motor
Reducer Optional
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Optional
Linear guide Taiwan Linear guide with dust proof
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system manual lubrication system
Tool calibration NO
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3,Ucancam, Aspire, etc.
Command Language G Code & M Code
Traveling speed 60m/min
Working speed 0-15m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
