Buy 4×8 Wood Engraving Machine for Sale in UK, Dominican Republic

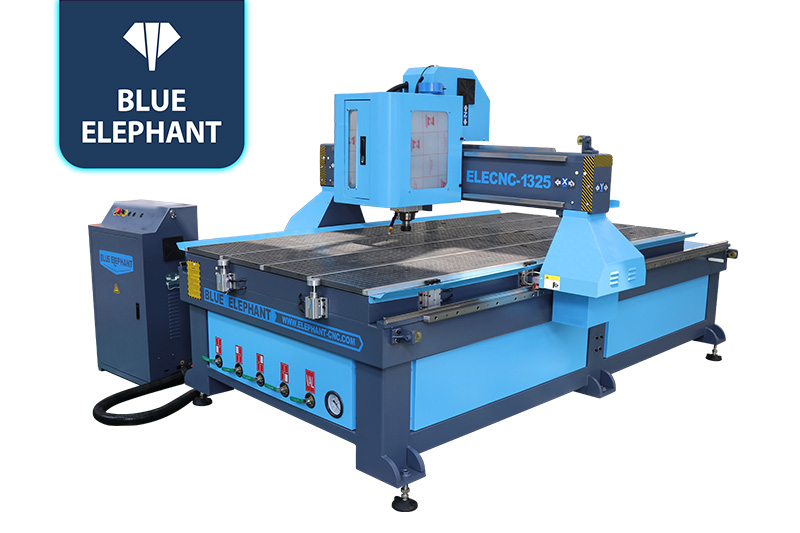

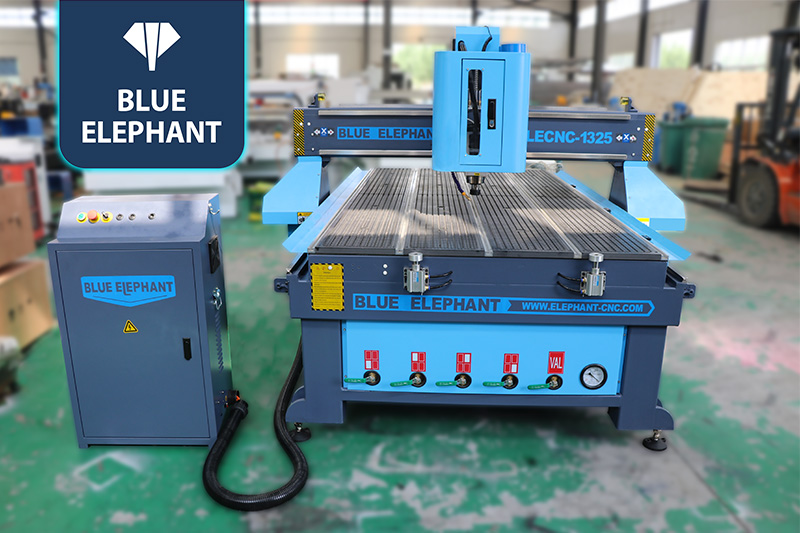

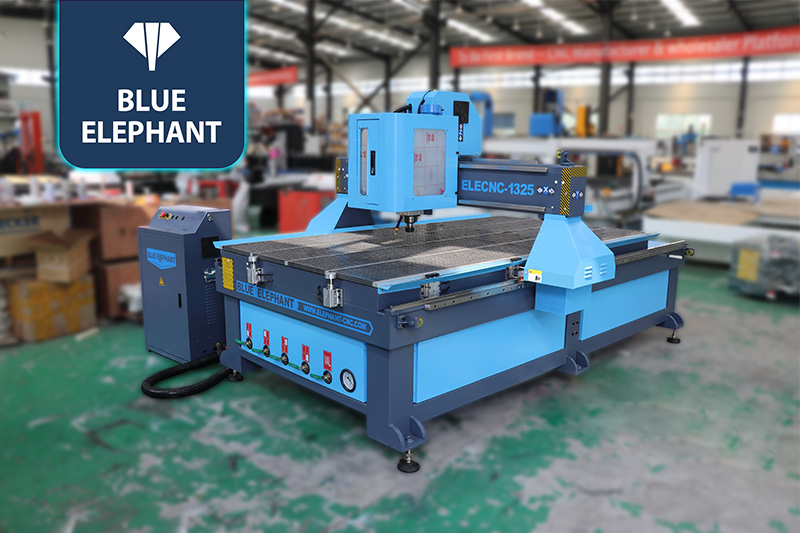

☆It is a typical 3-axis cnc wood engraving machine specially designed for woodworking bussiness who need to process a large quantity of wood boards.
CNC Router Machines Video
features
- The spindle with a protective cover that not only protects against dust, but also effectively extends the life of the machine.
- Equipped with positioning cylinder, which saves time for material to be aligned on the table.
- T-slot & vacuum working table is used to fix the material with the clamp or to fix the material with vacuum.
Parameters
| Serial Number | S20190826L |
| Model | ELECNC-1325 |
| Working area | 1300*2500*200mm |
| Spindle | 4.5kw HQD air cooling spindle |
| Inverter | 5.5kw Fuling inverter |
| Control system | DSP A11 control system |
| Motor and driver | Leadshine Stepper motor and driver |
| Working Table | T slot & vacuum working table |
| Vacuum pump | 5.5kw water circulation vacuum pump |
| X,Y,Z Transmission | Helical rack gears transmission on XY axis
Taiwan TBI ball screw transmission on Z axis |

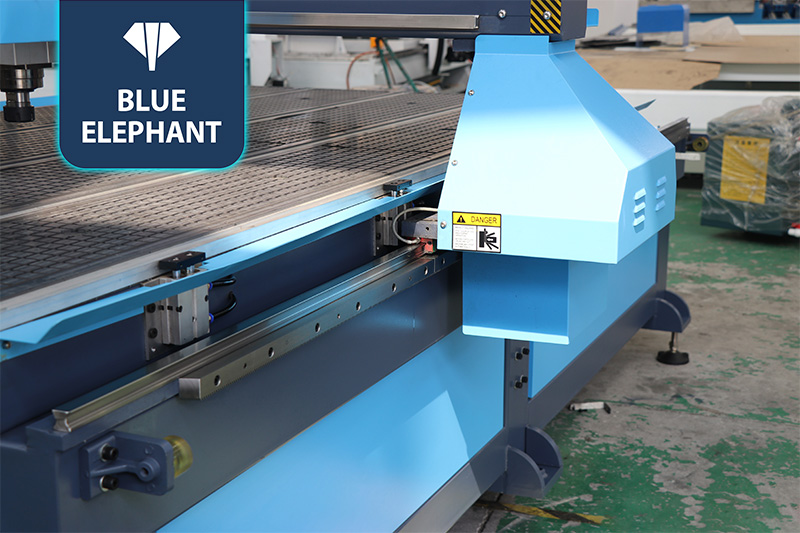

| X,Y,Z Rail | Taiwan linear guide rails |
| Voltage | 380v, 3ph, 50hz(optional) |
| Dust collector | 3kw double bag dust collector |
| Software Compatibility | Artcam software |
Application
It is mainly for processing double-colored boards, solid wood, MDF, fireboard, plywood, and melamine boards. It can also process other non-metal materials, like rubber, acrylic, PVC boards, and soft metals, like aluminum sheets.Moreover, the most common purpose of the CNC wood cutting machine is to make panel furniture.
