Affordable1530 ATC 4 Axis C and C Wood Machine for Sale in England at Cost Price

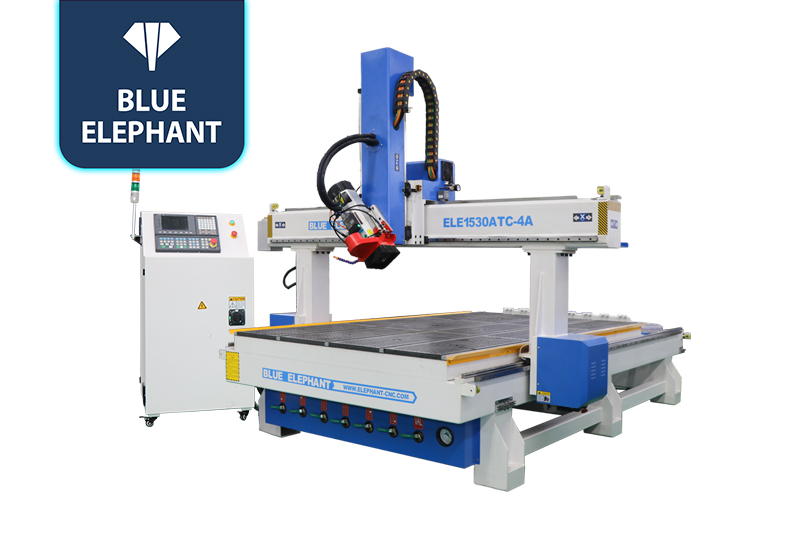

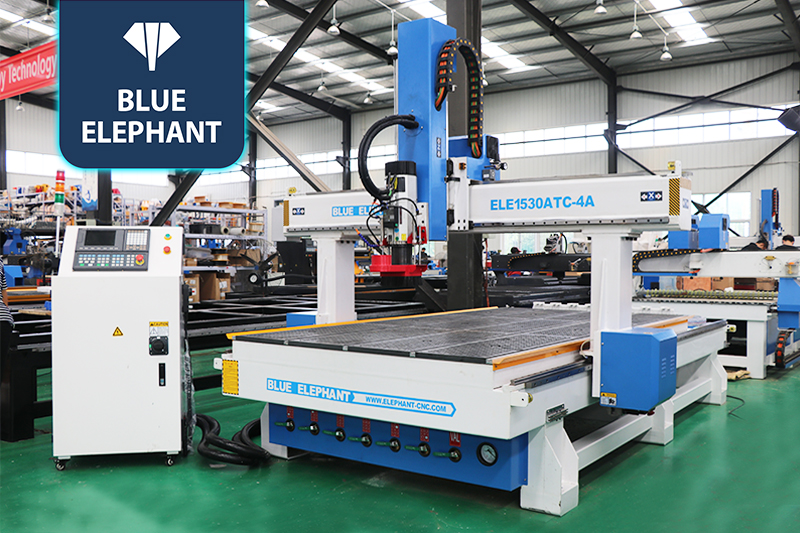

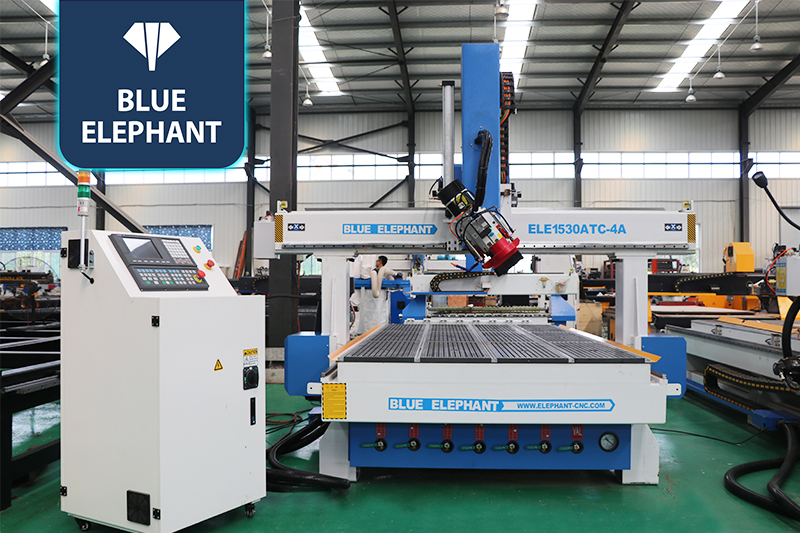

☆This 4 axis CNC woodworking machine can complete a variety of 2D, 2.5D, and 3D work on wood, melamine, PVC, and other non-metal materials. It can exchange among 8 different CNC router tools automatically during the operation without stopping the machine.

4 Axis CNC Router Machines Video

Features

  • The automatic tool changing function facilitates the tool changing and reduces non-production time during the operation.
  • Its industrial steel square tube structure is rigid and endurable, effectively preventing from vibration and deformation after long-time use of the machine.
  • Specifications of this CNC router machine can be customized to meet different processing demands.

Parameters

Description Parameter
Model ELECNC-1530ATC-4A
Tool magazine Linear type auto tool changer with 8 tools storage
X,Y,Z Working Area 1500x3000x400mm
Table Size 1500×3000mm
Table Surface Vacuum and T-slot working table, 6 zones
Structure Industrial class square tube strong structure
X, Y Structure Rack and Pinion Drive, Taiwan PMI 25# Linear Square Rail;
Z Structure Taiwan PMI 25# Linear Square Rail and TBI Ball Screw

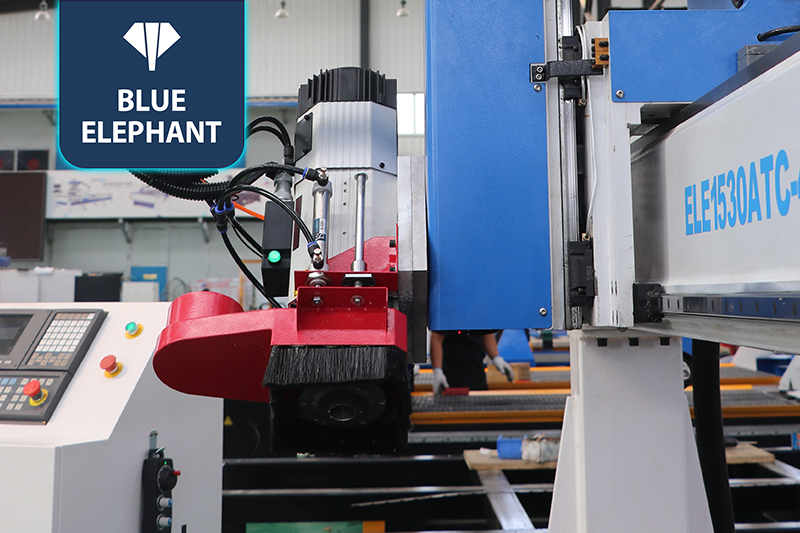

Spindle Rotary spindle, 9kw HQD ATC air cooling spindle, Swing -90°to +90° degree
Spindle Speed 0-24000RPM
Drive Motors 850w Japan YASKAWA servo motors and drivers
Inverter 11kw Fuling inverter
Working Voltage 380v, 3phase, 50HZ (or customized)
Command Language G Code
Operating System Taiwan SYNTEC control system
Computer Interface USB
Collet ISO30
Machine color White and blue (Can be customized)
Software Artcam
Lubrication system New type 1.5L big Automatic lubrication
Tool sensor Automatic tool sensor calibration
Vacuum pump 3kw new type double packet dust collector (380V, 3Phase, 50Hz)
Dust collector 7.5kw water circulation vacuum pump (380V, 3Phase, 50Hz)

Application

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
